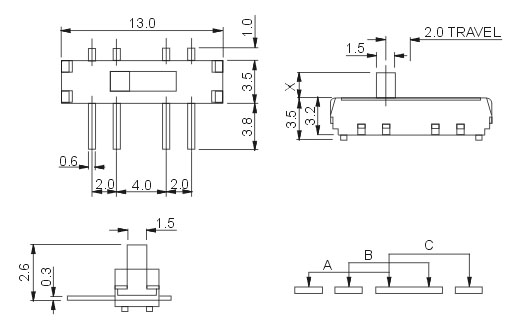

| 型號:MSS-23D19(1P3T) |
名稱:撥動開關 |
| 描述: |
|
|
橫柄式/扛桿式撥動開關系列主要技術指標 Side Knob/Toggle Slide Switch
|
|
額定電壓.電流 Krating
|
DC 12V 0.1A 30V 0.3A DC 50V 0.3A 0.5A DC 60V 0.5A |
|
接觸電阻 ContactResistance
|
30m ohm max. |
|
絕緣電阻 InsulationResistance
|
100m ohm at 500V DC |
|
耐電壓 Withstand Voltage
|
AC 500V for 1 min. |
| 動作壽命 Switching Life |
50,000 cycles(Unloading at 15-18cycles per minute)
all information is for reference only.Particulars of any item are based on individual specifications
|
 |
